Basic Boat Info
Engines / Speed
- Make: Universal
- Model: M-35 4 cyl
- Fuel: Diesel
Cabrillo Marina 210 Whaler's Walk, Suite 123
San Pedro, California, US, 90731
Construction: Wood; beveled strip planked
Hull: 1 1/8" x 1 1/4" mahogany partial edge glued and caulked
Fasteners: bronze nails (edge of strip plank), bronze #12 and #14 screws frames to floors, clamps, backbone bronze bolted
Frames: double futtock sawn white oak to 2 3/4" x 3" 17" centers
Stringers: tripled 1 1/2" x 3" mahogany Clamp: doubled 1 1/2" x 3" mahogany
Stem/Horn/Sternpost: 7" white oak and clear fir Deadwood: mahogany

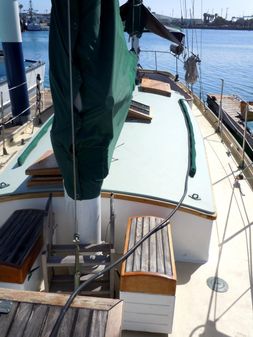

Deck: painted FRP over marine plywood Beams: 2" x 1 3/4" mahogany
Cabin: 1 1/4" mahogany Cabin top: painted FRP over 3/8" marine plywood
Cabinetry: mahogany and marine plywood, purple heart soles
Rudder: mahogany on bronze post, stainless shoe and gudgeons
Keel: external cast lead ballast, monel bolted

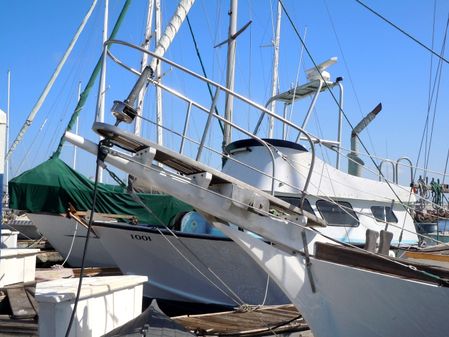

Rig: tapered laminated spruce spars, bronze fittings, bow sprit clear fir
Rigging: stainless 1x19 wire rope, swaged mizzen, swaged and Sta-Loc main sprit shrouds and bobstay swaged, synthetic running rigging

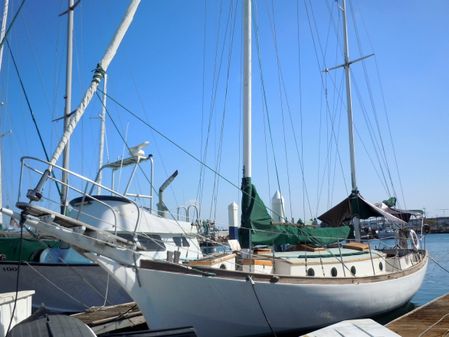

Built in Breskens, Netherlands by Maas Bros in 1960, this vessel was one of the last Hugh Angelman designs in his retirement years. The vessel scantlings are sustantial relative to her size, exceeding those to be expected in a 45' vessel.

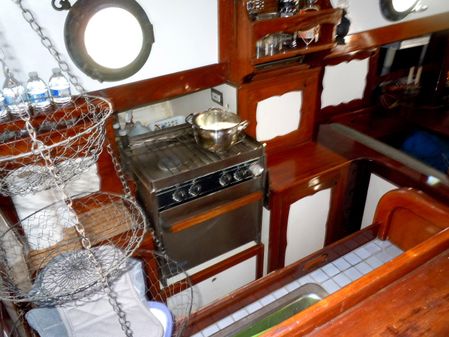

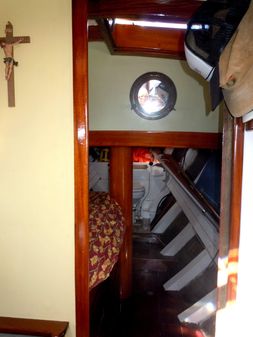

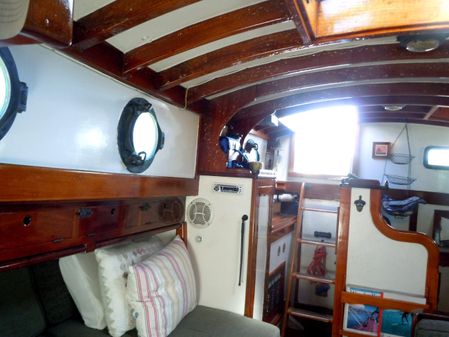

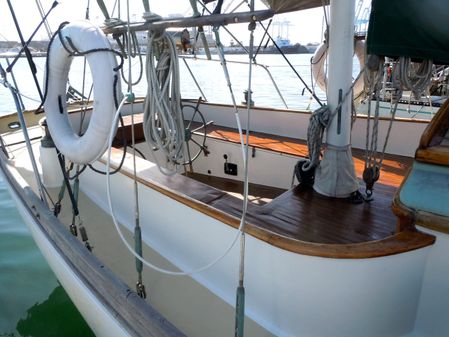

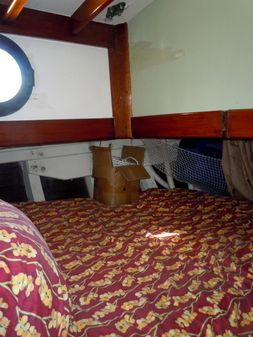

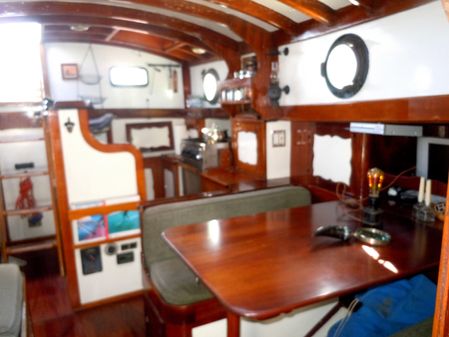

From the spacious cockpit enter through the companionway to starboard and find to starboard the refrigeration and freezer compartments and a wet locker. The U-shaped galley is to port, equipped with a 2-burner LPG gimbaled stove, oven and stainless sink. The engine compartment is centerline below the galley counter. Forward is the salon with a dinette to port and settee to starboard, and in the forepeak is a double berth and open head.

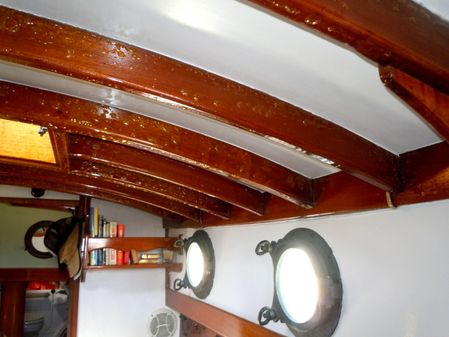

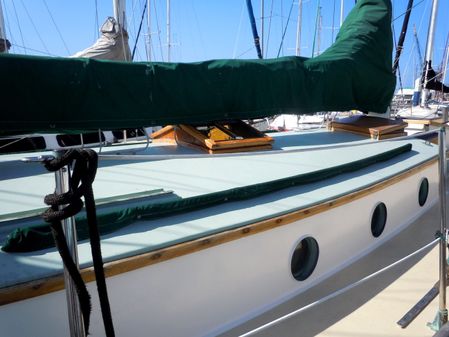

There are 11 opening bronze ports, 3 opening hatches and one butterfly hatch providing excellent ventilation. The forepeak head has a 24 gallon holding tank with macerator and overboard seacock plus discharge deck fitting.

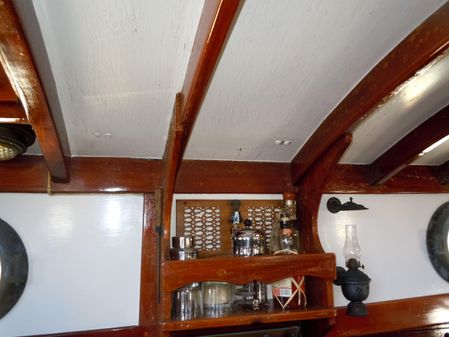

Gorgeous beaming throughout, and purple heart soles.

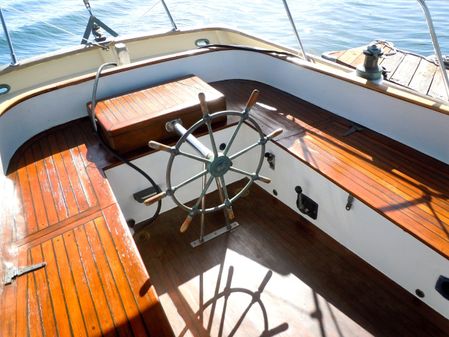

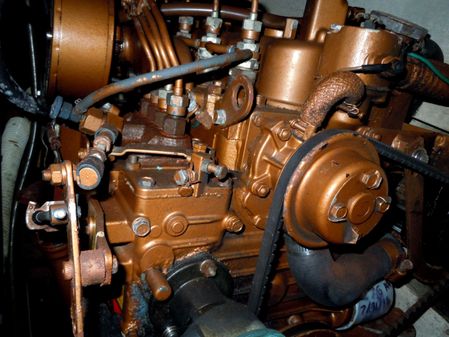

30hp Universal Model #35 four cylinder diesel, with fresh water cooling via heat exchange. Steering is through a wheel on stainless shaft to two worm gear assemblies connected by shafts with universals. Hours currently not known.
Prop shaft is 1 1/8" stainless with a 3-bladed 16x11 bronze propeller.
- 90 gals fuel in black iron tank, grounded and vented
- 125 gals water in stainless steel tank
- 24 gals holding with macerator and overboard and deck discharge

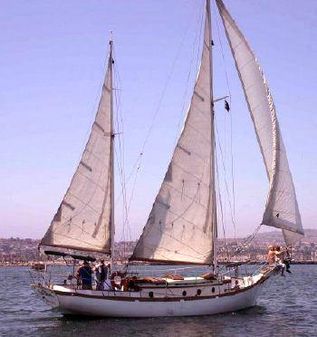

- Marconi Ketch rig
- Spars: tapered painted spruce masts, single spreaders, spruce booms
- Rigging: 1x19 stainless wire, bronze turnbuckles, terminals are T-bolts with toggles, and the chainplates are stainless tangs bolted to interior reinforcements
- Sails Bent on main and mizzen and roller furling jib
- Winches: 2 x Barient ST primaries, 2 x South Coast main and jib halyard, 1 x Lewmar mizzen halyard
- Ground tackle: 35# plow anchor, 300' 5/16" HT chain plus spare on deck

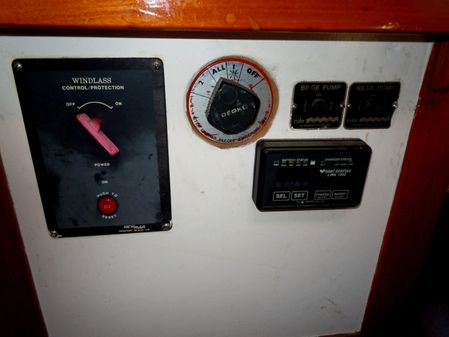

- Plath electric windlass
- Plastimo compass
- Auto Nav autopliot
- Garmin GPS
- VHF radio
- Kerosene lamps
- Swim ladder

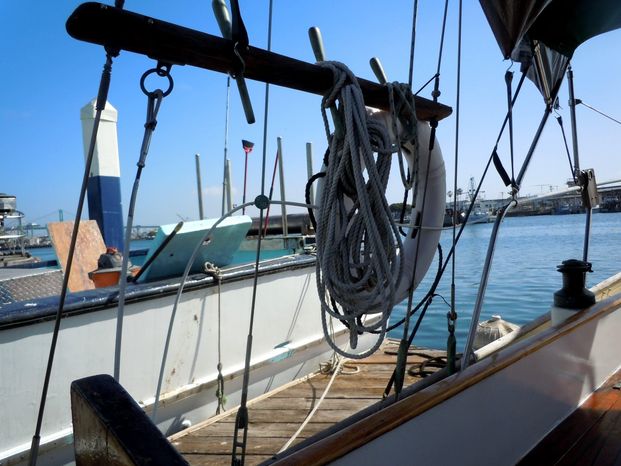

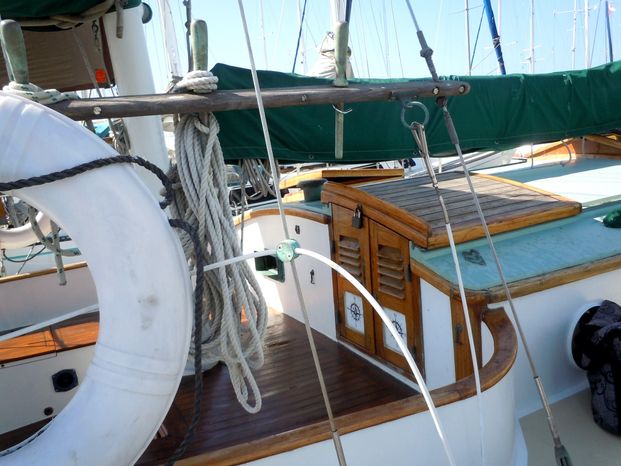

- Pin rails on main and mizzen shrouds
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
Contact Listing Broker Helen Kaz for more information and your personal appointment to view: 310-254-4081 email@example.com
