1983 Pacific Seacraft Orion 27 MK II

Papeete, French Polynesia

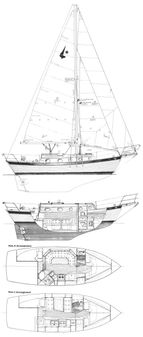

Pacific Seacraft Orion MKII "C" Plan. One of the most solidly built, EXTREMELY WELL equipped, and lovingly maintained pocket cruisers available anywhere. Built by the legendary Pacific Seacraft yard in California. A classic beauty that gets complimented everyday!

Seller is willing to discuss delivering the boat to a buyer.

This a very beautiful boat, and someone will be lucky to get it!

Basic Boat Info

Boat Name: Dawn
Make: Pacific Seacraft
Model: Orion 27 MK II
Year: 1983
Condition: Used
Category: Sail
Designer: W.I.B. Crealock
Construction: Fiberglass
Boat Hull ID: CTY00051H383
Has Hull ID: Yes
Keel Type: Other


Length: 31 ft
Length Overall: 31 ft
Waterline Length: 22 ft
Beam: 9'3 ft
Max Draft: 4 ft
Displacement: 10,000 lb
Dry Weight: 10,000 lb
Ballast: 3,800 lb
Single Berths: 2
Double Berths: 1
Cabins Count: 1

Engines / Speed

Engines: 1
  • Make: Yanmar
  • Model: 3YM20
  • Drive Type: Direct
  • Fuel: Diesel
  • Engine Power: 21hp
  • Type: Inboard
  • Propeller Type: 3 Blade, Bronze
  • Year: 2009
  • Engine Hours: 1400
Cruising Speed: 5.21 kn
Maximum Speed: 5.47 kn


Fuel Tanks: 1
Fuel Tank Capacity: 25 gal
Water Tanks: 1
Water Tank Capacity: 25 gal
Holding Tank Count: 1
Holding Tank Capacity: 16 gal


Heads Count: 1
Drive Type: Direct
Windlass Type: Manual
Boat Class: Cutter


Don Ross
For more information or an appointment to see tis fine vessel call don at 949-274-6595 or e-mail
The Shoreline Yacht Group


The Shoreline Yacht Group
Cabrillo Marina 210 Whaler's Walk, Suite 123
San Pedro, California, US, 90731

Deck and Hull
  • Monitor Self Steering, new wind blades and control lines
  • Spectra Ventura Watermaker (new price $7,300), with new membrane and serviced Clark Pump
  • Refrigeration by Cool Blue/Technautics holding plate refer/freezer system (serviced by Technauntics)
  • New Bow Sprit

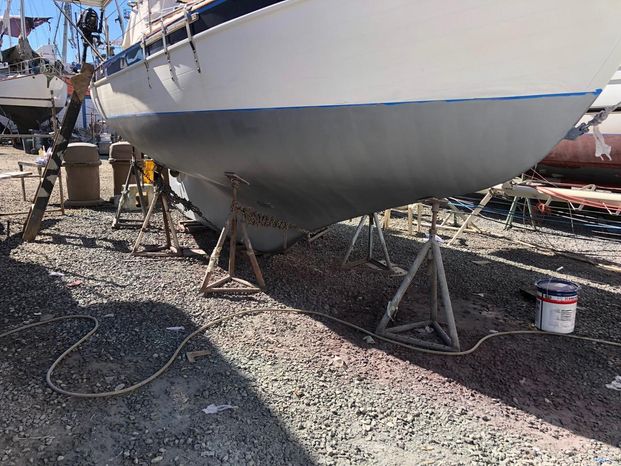

  • New Epoxy bottom job
  • New Vetus single lever engine control quadrant
  • Fresh Bottom Paint in 2022
  • All new interior paint and varnish in Herreshoff style
  • New AWLGRIP on whale Strip
  • Fresh Varnish on all exterior teak
  • New cutlass bearing and dripless shaft seal
  • New rudder bearings and bushings
  • New tiller
  • New Head and all sanitation hoses and valves
  • New or rebuilt thru hulls and seacocks
  • New cockpit shower
  • New bilge pumps both manual and electric
  • New faucets, and all new plumbing
  • Rebuilt water heater
  • New outboard Davit
  • Achilles 8'6" air floor inflatable (older)
  • Tohatsu 6hp 4 stroke OB (approx 50 hours)
  • Propane system upgraded, with 2 aluminum tanks w/new valves, and new solenoid valve, new tank selector, spare fiberglass tank
  • Force 10 cabin heater
  • Force 10 2 burner stove (serviced)
  • Custom teak and stainless stove cover
  • Mast pulled inspected and updated wiring, New LED lighting, New sheaves
  • All lighting inside and out LED
  • New custom polyethylene (No corrosion) fuel tank in bilge with increased capacity
  • New companionway hatch turtle
  • Non skid all renewed with softsand
  • New custom cabinetry lockers built and installed
  • All port lights rebuilt with tinted safety glass
  • Aft chain locker added
  • New Rocna Vulcan 12KG and oversized Fortress anchors, Spade anchor (backup), emergency sea anchor
  • Anchor rode forward 100' 5/16" chain plus 200' rode, aft 50' 5/16" chain plus 100' rode
  • Manual windlass
  • Companionway drop leafs, 3 different sets teak, plexiglass, screen.
  • All cushions updated
Sails and Rigging
  • (9) winches, (7) are Barients (2) are ST, plus (2) Andersen ST secondary winches
  • All sails serviced and washed plus New Genoa 125%, New Staysail, and Asymmetric spinnaker, Mainsail, Yankee, Storm Jib in excellent condition
  • Removeable inner forestay
  • New line stopper on mast
  • New upgraded chain plates
  • All new running rigging
  • Standing Rigging all Stayloks equipped, inspected and updated
  • All New Trojan batteries 6 total = 675 AH, plus new battery management and monitoring system
  • Battery charger (3) bank capacity
  • New 2000 watt 12V/110V inverter
  • New 560 watt solar system with (2) Victron MPPT WIFI controlers
  • New Smart Plug receptacle
  • New 50' Shore Power Cord
  • Most new electrical wiring including New 110V and 12V panels
Electronics and Navigation
  • Complete New B&G Electronics system including 4G 36 mile radar, 9" Chartplotter, AIS send/receive, wind speed, direction, depth, speed, temp
  • Chartplotter visable in cabin or in cockpit

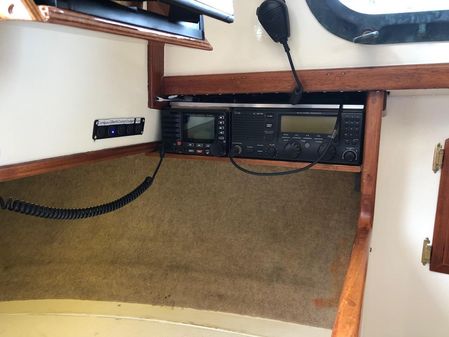

  • New VHF radio with AIS
  • SSB and tuner with back stay antenna
  • Pelagic electronic auto pilot that works with Monitor built by Scanmar
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
